Working with the PSE-20

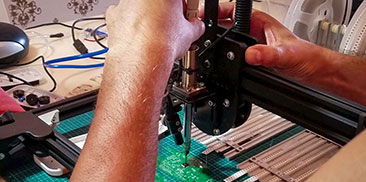

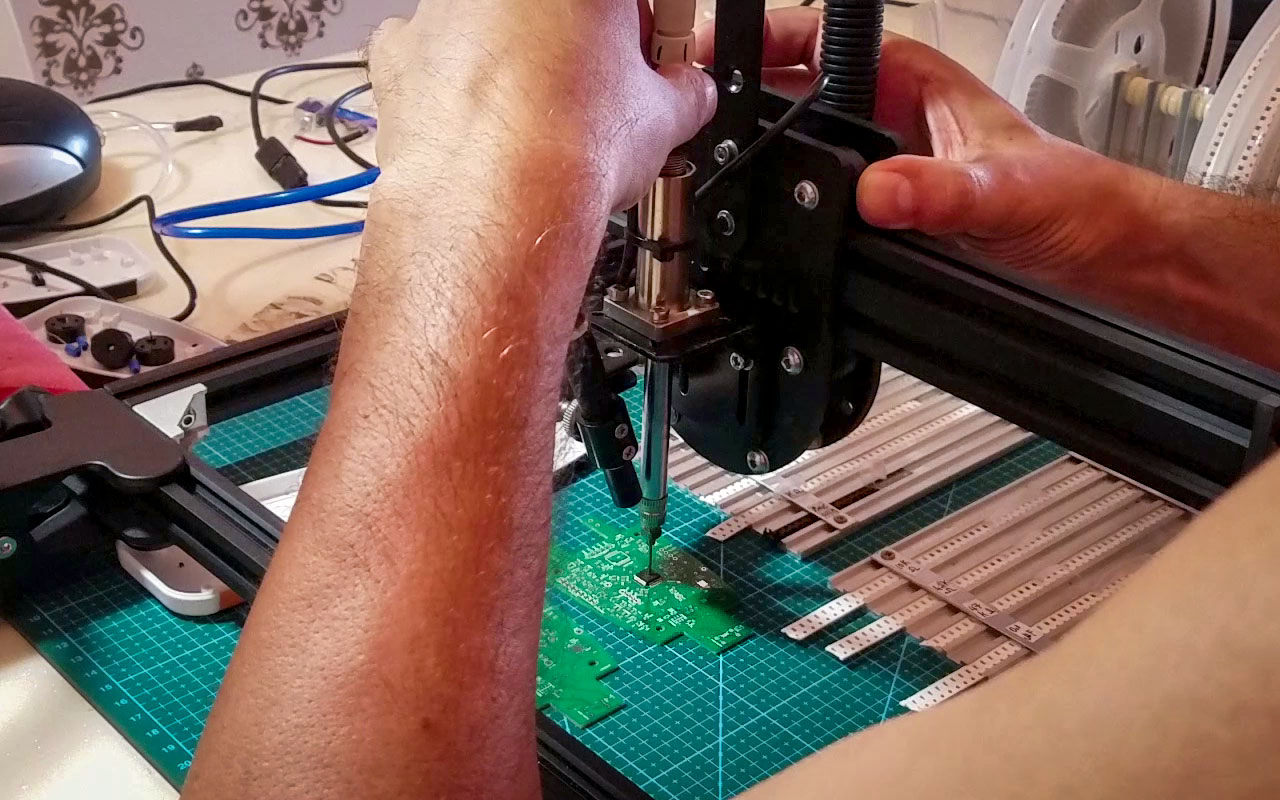

To operate any PSE model, no matter if manual or automatic, does not require special ability, but it does require a little bit of practice to understand how to move and how to stop steadily in a position. Thanks to a rotary joint the needle can rotate independently from the pipe connected to the vacuum pump. To release the component you will use the pedal switch. To install the nozzle-needle on the connector, you need to screw it in by half spin into its internal thread.

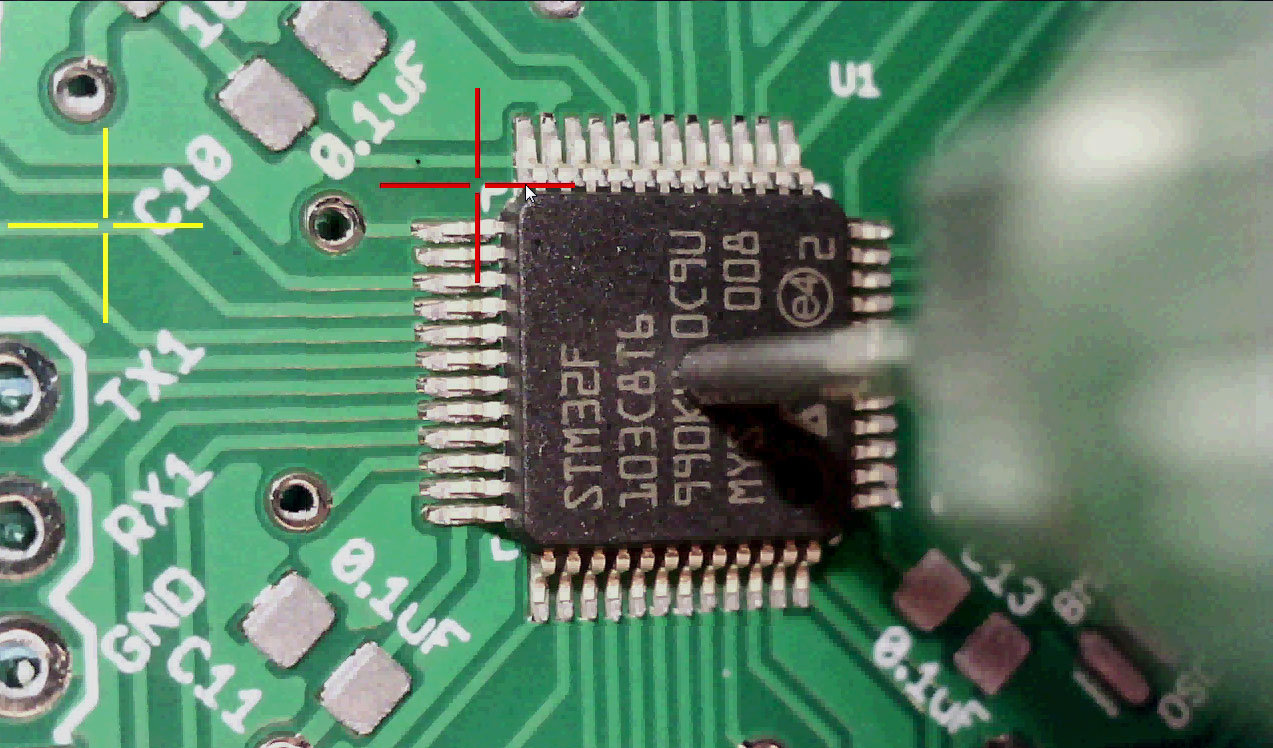

To stop the nozzle over a pad precisely, you could try to hold the wheels with your thumbs...If you need more friction, you could try to increase the brake effect on the movement by the lower wheels' eccentric nuts. Give a look to the picture, then watch the videos.
To stop the nozzle over a pad precisely, you could try to hold the wheels with your thumbs...If you need more friction, you could try to increase the brake effect on the movement by the lower wheels' eccentric nuts. Give a look to the picture, then watch the videos.
There is a new pump, it is more efficient, powerful and quiet compared to the old pump.. it fixes the problem of the old pump in relation to sporadic lack of power and electromagnetic interference... it is enough to keep the pump to the very low minimum, increase the power if you need to lift a component misplaced on the solder-past...
Please connect the 2 electro-valves like in the picture
Please connect the 2 electro-valves like in the picture
Learning to work with the PSE-20
One microscope configurationLearning to work with the PSE-20
Two microscopes configurationAssembling the PSE-20
Follow the guide
Assembling is not difficult, it requires just a little care during the calibration of the the microscopes's position. Watch the previous videos to learn how to mount and set the microscopes.
How to upgrade a PSE-20 to a PSE-22 with the KIT-22: Click here!
To operate any PSE model, no matter if manual or automatic, does not require special ability, but it does require a little bit of practice to understand how to move and how to stop steadily in a place. The rotation can be controlled thanks to a rotary joint. The needle can rotate independently from the pipe connected to the vacuum pump. This is well shown in some videos in the media gallery. To release the component you will use a pedal switch
Do not feel overwhelmed. You can follow our video and our instruction. You will be guided step by step, and if you have some doubts, just send us a message.
